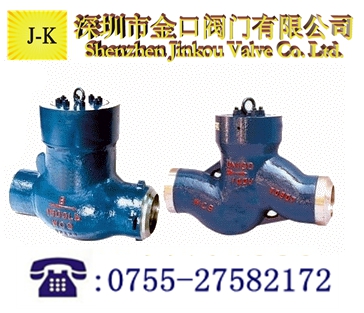

一、不銹鋼焊接止回閥概述：
啟閉件靠介質流動和力量自行開啟或關閉，以防止介質倒流的方向流動，以防止發生事故。止回閥按結構劃分，可分為升降式止回閥，旋啟式止回閥和蝶式止回閥三種。升降式止回閥可分為立式和臥式兩種。旋啟式止回閥分為單瓣式、雙瓣式和多瓣式三種。蝶式止回閥為直通式、以上幾種止回閥在連接形式上可分為螺紋連接、法蘭連接和焊接三種。
二、不銹鋼焊接止回閥主要零部件參數：
|
主 要 零 部 件
|
閥體、閥蓋、搖桿
|
WCB
|
CF8
|
CF8M
|
WC6、WC9
|
|
|
閥瓣
|
WCB堆Cr13或硬質合金
|
CF8堆硬質合金
|
CF8M堆硬質合金
|
WC6、WC9堆硬質合金
|
|
|
閥座
|
25堆Cr13或硬質合金
|
304堆硬質合金
|
316堆硬質合金
|
20Cr1MoV堆硬質合金
|
|
|
墊片
|
軟鐵、XB450
|
聚四氟乙烯
|
聚四氟乙烯
|
不銹鋼+耐酸石棉纏繞墊
|
|
|
螺栓
|
35CrMoA
|
35CrMoA
|
35CrMoA
|
25Cr1Mo1V
|
|
|
螺母
|
45
|
45
|
45
|
35CrMoA
|
|
主要參數
|
適用介質
|
油品、水、蒸汽
|
硝酸類
|
醋酸類
|
油品、水、蒸汽
|
|
|
適用溫度
℃
|
≤425
|
≤200
|
≤200
|
≤550
|
三、不銹鋼焊接止回閥型號參數：
|
型號
|
公稱
通徑
NPS(in)
|
壓力級
Class
|
主要結構尺寸
|
閥體
材料
|
性能規范
|
|
|
|
|
D
|
D1
|
L
|
L1
|
H
|
|
適用溫度(℃)
|
適用介質
|
|
SFH-64C150C
|
2"
|
150
|
|
|
203
|
|
170
|
WCB
|
≤425
|
水、油品、蒸氣等
|
|
"
|
3"
|
"
|
|
|
241
|
|
185
|
"
|
"
|
"
|
|
"
|
4"
|
"
|
|
|
292
|
|
215
|
"
|
"
|
"
|
|
"
|
6"
|
"
|
|
|
356
|
|
260
|
"
|
"
|
"
|
|
"
|
8"
|
"
|
|
|
495
|
|
300
|
"
|
"
|
"
|
|
"
|
10"
|
"
|
|
|
622
|
|
350
|
"
|
"
|
"
|
|
"
|
12"
|
"
|
|
|
699
|
|
400
|
"
|
"
|
"
|
|
"
|
14"
|
"
|
|
|
787
|
|
450
|
"
|
"
|
"
|
|
"
|
16"
|
"
|
|
|
864
|
|
480
|
"
|
"
|
"
|
|
"
|
18"
|
"
|
|
|
978
|
|
540
|
"
|
"
|
"
|
|
"
|
20"
|
"
|
|
|
978
|
|
600
|
"
|
"
|
"
|
|
"
|
24"
|
"
|
|
|
1295
|
|
680
|
"
|
"
|
"
|
|
SFH-64C300C
|
2"
|
300
|
|
|
267
|
|
170
|
WCB
|
≤425
|
水、油品、蒸氣等
|
|
"
|
3"
|
"
|
|
|
318
|
|
215
|
"
|
"
|
"
|
|
"
|
4"
|
"
|
|
|
356
|
|
235
|
"
|
"
|
"
|
|
"
|
6"
|
"
|
|
|
445
|
|
300
|
"
|
"
|
"
|
|
"
|
8"
|
"
|
|
|
533
|
|
340
|
"
|
"
|
"
|
|
"
|
10"
|
"
|
|
|
622
|
|
350
|
"
|
"
|
"
|
|
"
|
12"
|
"
|
|
|
711
|
|
420
|
"
|
"
|
"
|
|
"
|
14"
|
"
|
|
|
838
|
|
480
|
"
|
"
|
"
|
|
"
|
16"
|
"
|
|
|
864
|
|
520
|
"
|
"
|
"
|
|
"
|
18"
|
"
|
|
|
978
|
|
600
|
"
|
"
|
"
|
|
"
|
20"
|
"
|
|
|
1016
|
|
670
|
"
|
"
|
"
|
|
"
|
24"
|
"
|
|
|
1346
|
|
750
|
"
|
"
|
"
|
|
SFH-64C600C
|
2"
|
600
|
|
|
292
|
|
175
|
WCB
|
≤425
|
水、油品、蒸氣
|
|
"
|
3"
|
"
|
|
|
356
|
|
230
|
"
|
"
|
"
|
|
"
|
4"
|
"
|
|
|
432
|
|
295
|
"
|
"
|
"
|
|
"
|
6"
|
"
|
|
|
559
|
|
360
|
"
|
"
|
"
|
|
"
|
8"
|
"
|
|
|
660
|
|
400
|
"
|
"
|
"
|
|
"
|
10"
|
"
|
|
|
787
|
|
460
|
"
|
"
|
"
|
|
"
|
12"
|
"
|
|
|
838
|
|
520
|
"
|
"
|
"
|
|
"
|
14"
|
"
|
|
|
889
|
|
560
|
"
|
"
|
"
|
|
"
|
16"
|
"
|
|
|
991
|
|
650
|
"
|
"
|
"
|
|
"
|
18"
|
"
|
|
|
1092
|
|
730
|
"
|
"
|
"
|
|
"
|
20"
|
"
|
|
|
1194
|
|
800
|
"
|
"
|
"
|
|
"
|
24"
|
"
|
|
|
1397
|
|
900
|
"
|
"
|
"
|
四、不銹鋼焊接止回閥售后服務
感謝您選購本公司閥門產品，本公司產品質量保證，價格合理，貨到快捷，售后到位。本產品嚴格按照ISO9001國家質量體系標準進行質量控制。質量問題三個月包換，保修一年
專業制造、專業服務、為您創造更多價值!
金口閥門致力于滿足用戶的期望，不斷提升服務質量，精益求精，“真誠的服務”是永恒的主題，嚴格按照ISO9001-2000質量體系認證要求，質量嚴格把關，責任到人，確保生產、銷售、服務的一條龍運行.加強與用戶溝通，竭誠為廣大新老客戶提供優質的產品，至善至美服務.
特此我廠做出如下承諾：
產品標準：
產品嚴格按中國GB、HG標準和美國API等標準設計、制造、驗收。密封面硬度達到國家規定要求，寬度超過國家標準.
售前服務：
產品介紹，技術交流，非標產品設計，疑難解答.
售中服務:
1.守信合同，保證及時供貨，隨時保持與客戶聯系.
2.對特殊或復雜的產品，我廠安排介紹人員對用戶進行產品使用、故障排除、調試及維修進行培訓和指導.
售后服務：
- 產品質保期為自簽訂合同生效起12個月，實行“三包”服務，（包退、包換、包修）.
- 產品在使用中我廠定期組織技術、質檢人員進行訪問，征詢用戶對產品質量、使用狀況、改進意見等各方面的反饋.
- 對用戶投訴質量問題，快速做出反應，售后服務人員在24-36小時（省外48小時）趕赴現場.
- 對售后服務，要求用戶填寫服務后的質量反饋信息表，并做出鑒定意見，一邊提供的服務質量.
